Brand Name : | HUANGHE,DOKA |
Model Number : | HH200ZH-C3 |
Certification : | CCC,ISO, |
Price : | |
Payment Terms : | T/T, L/C, D/P D/A, Credit Card, Western Union, Cash |
Supply Ability : | 6000 units per Month |
Delivery Time : | 25 Working days |

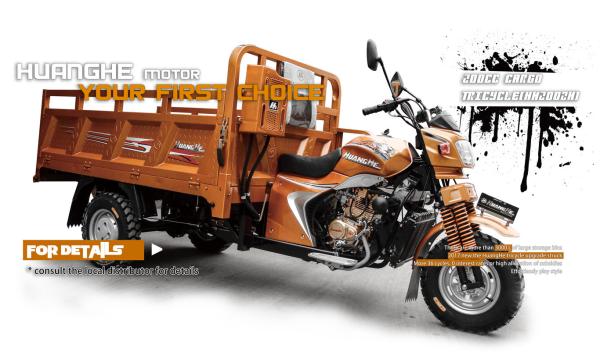

200CC Motorized Cargo Tricycle with Strengthed Delivery Van Cargo Trike for Heavy Loading
A/Description:
B/ Recommend Reasons:
C/ Technical Specification:
Technical Parameter: | |
Model: | HH200ZH-C3 |
Engine Type: | 4 Stroke, single-cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3600*1300*1360 |
Net weight (kg): | 380 |
Rated Max. load (kg): | 1500 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 3.9 |
D/ CKD Packing and loading :
The packing and loading Method is also very important for the cargo motor tricycle. If pack and load well and there's no waste for container space, one 40HQ can load much more qty to save shipping and tax cost for buyers. So CKD packing for tricycle is recommended first.
![]() |
